Solo Engineer Stack — Full Tutorial

Build PulseFeedback — a real, runnable feature-feedback SaaS — using 10 open-source repos with equal weight.

Every part maps to files you can run, open in a browser, or show on camera. Nothing is slide-deck-only.

Based on The Solo Engineer Stack (Techlatest.net, Apr 2026) · Live demo: DEMO.md

---

Table of contents

1. Part 0 — Live demo first
2. Part 0b — Repo layout & architecture
3. Part 1 — Task Master (PM)
4. Part 2 — CrewAI (tech lead)
5. Part 3 — LangGraph (architect)
6. Part 4 — OpenHands (junior dev)
7. Part 5 — Aider (mid-level dev)
8. Part 6 — Cline (IDE teammate)
9. Part 7 — n8n (operations)
10. Part 8 — Coolify (DevOps)
11. Part 9 — PostHog (QA + data)
12. Part 10 — Chatwoot (support)
13. Part 11 — Close the loop

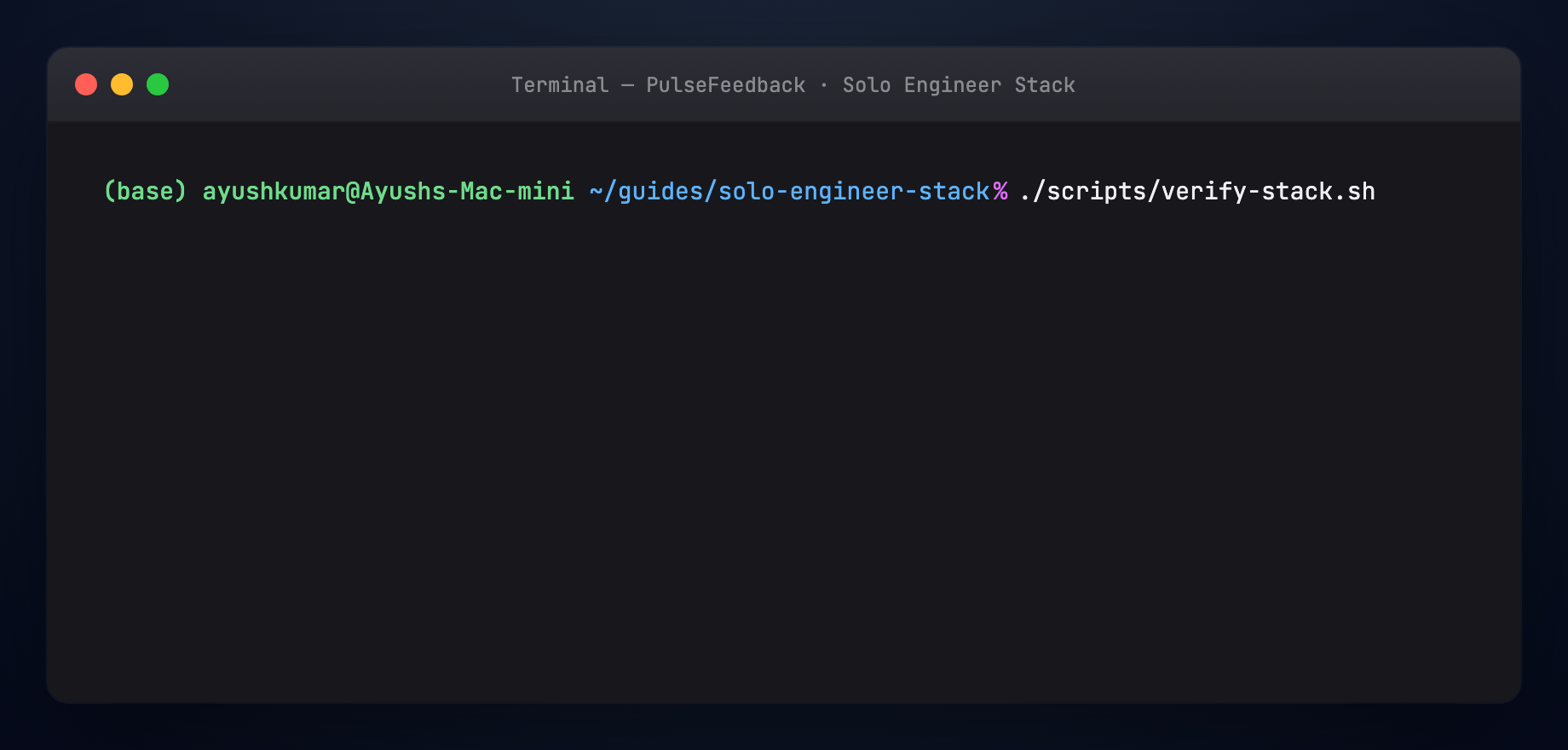

14. Part 12 — One-command verification

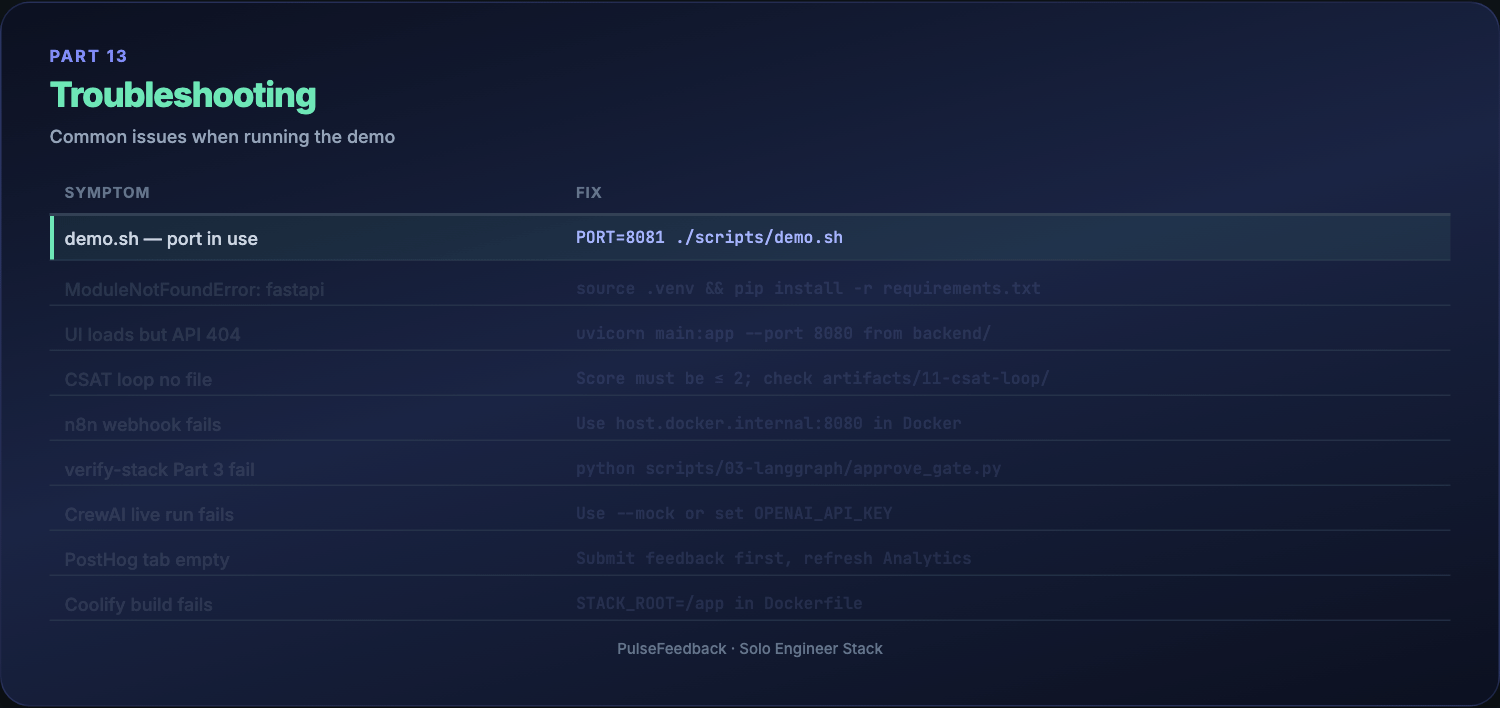

15. Part 13 — Troubleshooting

---

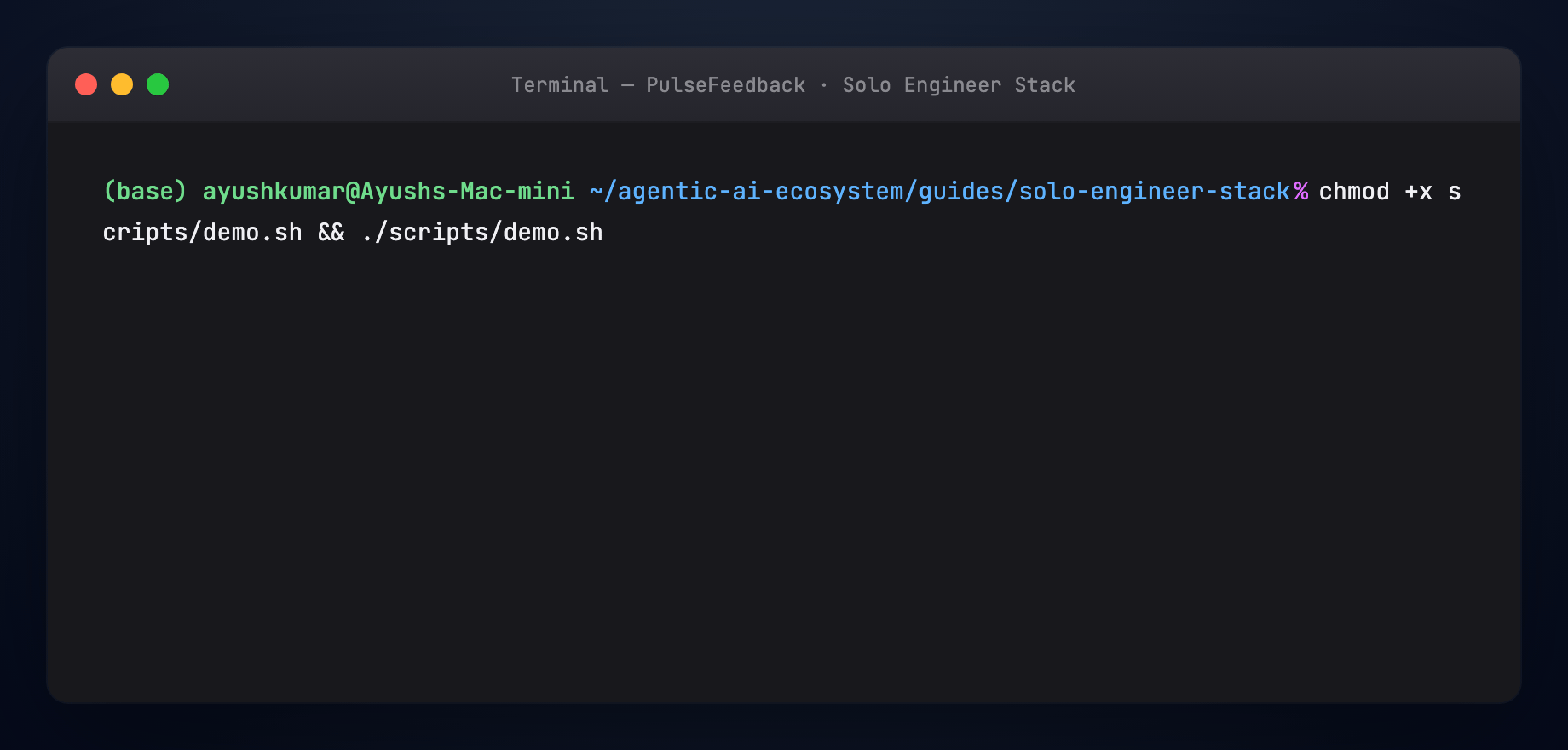

Part 0 — Live demo first

Do this before reading further. The whole tutorial assumes PulseFeedback is running on your machine.

git clone https://github.com/Ayush7614/agentic-ai-ecosystem.git
cd agentic-ai-ecosystem/guides/solo-engineer-stack
cp .env.example .env
python3 -m venv .venv && source .venv/bin/activate
pip install -r requirements.txt
chmod +x scripts/*.sh scripts/*/*.sh 2>/dev/null || chmod +x scripts/demo.sh scripts/verify-stack.sh
./scripts/demo.sh

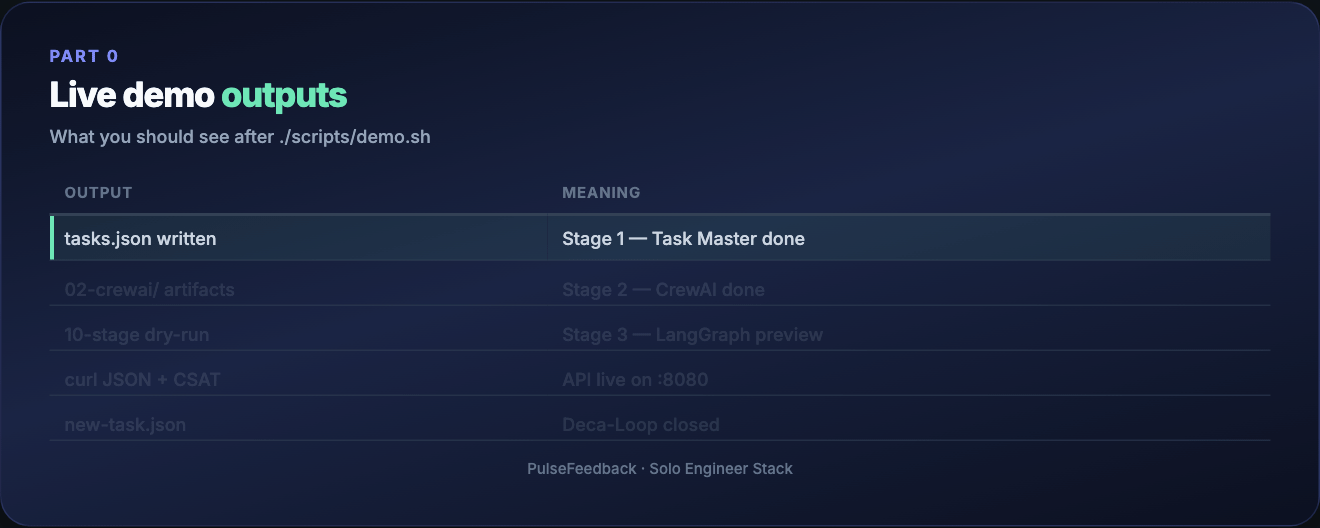

What you should see

Output	Meaning
Wrote artifacts/01-task-master/tasks.json	Stage 1 done
Wrote mock artifacts to artifacts/02-crewai/	Stage 2 done
10-stage dry-run list	Stage 3 preview
curl JSON for feedback + CSAT	API live
artifacts/11-csat-loop/new-task.json	Deca-Loop closed

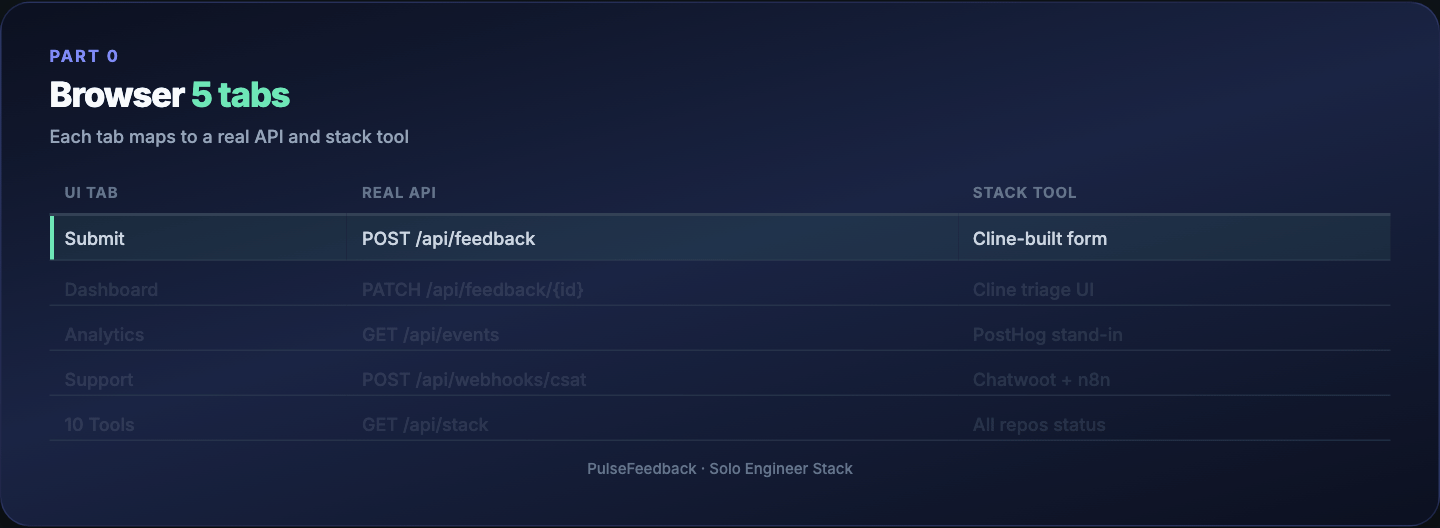

Open http://localhost:8080:

UI tab	Real API	Stack tool
Submit	POST /api/feedback	Cline-built form
Dashboard	PATCH /api/feedback/{id}	Cline triage UI
Analytics	GET /api/events	PostHog stand-in
Support	POST /api/webhooks/csat	Chatwoot + n8n loop
10 Tools	GET /api/stack	All repos status

Prove it with tests

pytest tests/ -q
# 4 passed — health, CRUD, CSAT loop, stack endpoint

Blog/video script: DEMO.md

---

Part 0b — Repo layout & architecture

What lives in this folder

guides/solo-engineer-stack/
├── pulsefeedback/              # ← THE PRODUCT (stages 4–6 output)
│   ├── backend/main.py         #   FastAPI — all routes
│   ├── frontend/               #   Dashboard UI (HTML/CSS/JS)
│   └── Dockerfile              #   Coolify deploy (stage 8)
├── artifacts/                  # ← One folder per tool stage
│   ├── 01-task-master/tasks.json
│   ├── 02-crewai/brief.md, spec.md, test-plan.md
│   ├── 03-langgraph/state-approved.json
│   └── 11-csat-loop/new-task.json   # created on CSAT ≤ 2
├── scripts/
│   ├── demo.sh                 # full live demo
│   ├── verify-stack.sh         # check all artifacts
│   ├── 01-task-master/generate_tasks.py
│   ├── 02-crewai/run_crew.py
│   └── 03-langgraph/approve_gate.py
├── orchestrator/graph.py       # LangGraph Deca-Loop
├── n8n/workflows/csat-loop.json
├── examples/prd-pulsefeedback.md
├── tests/test_api.py
└── docker-compose.yml          # app + n8n

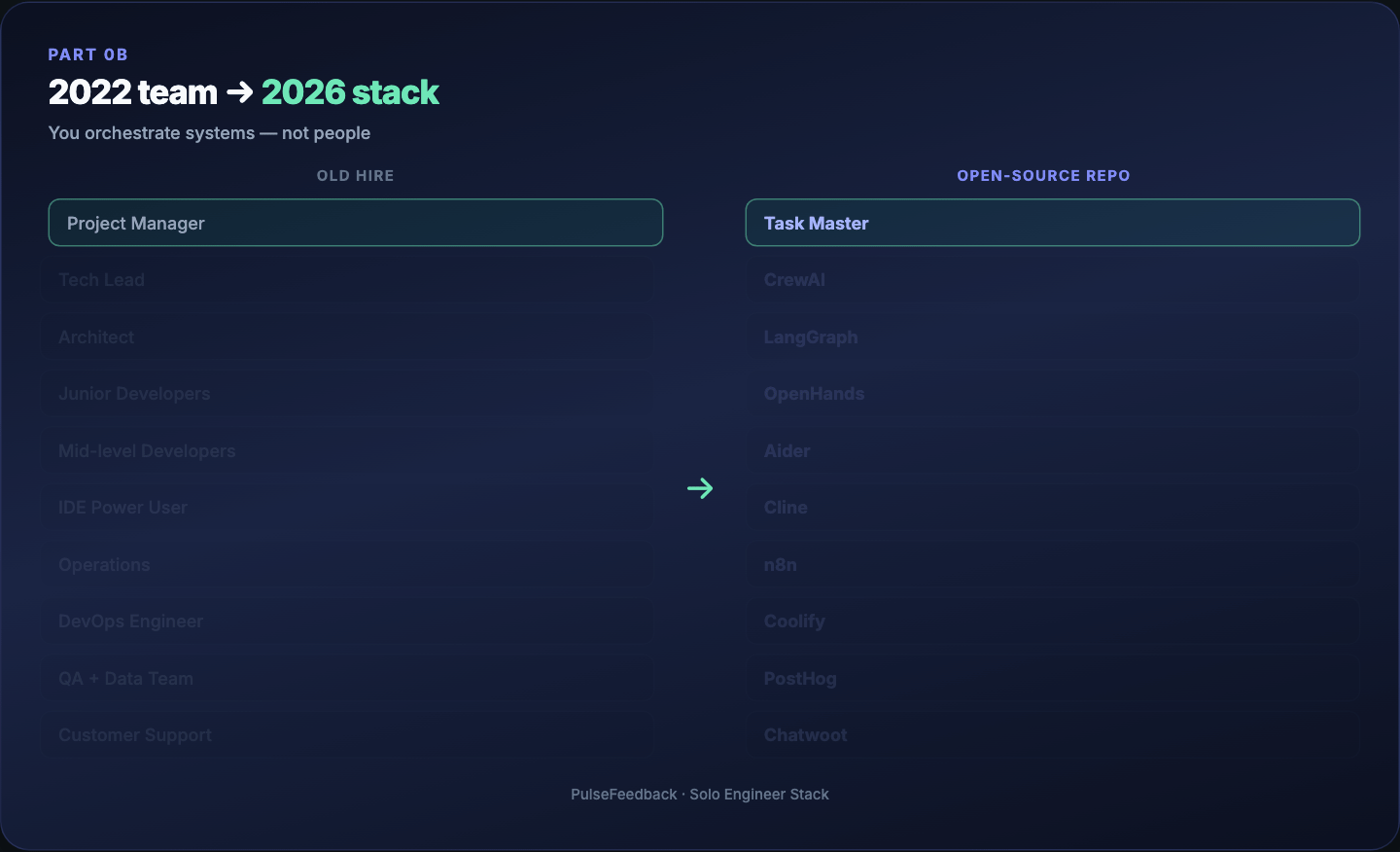

Old team → 10 tools

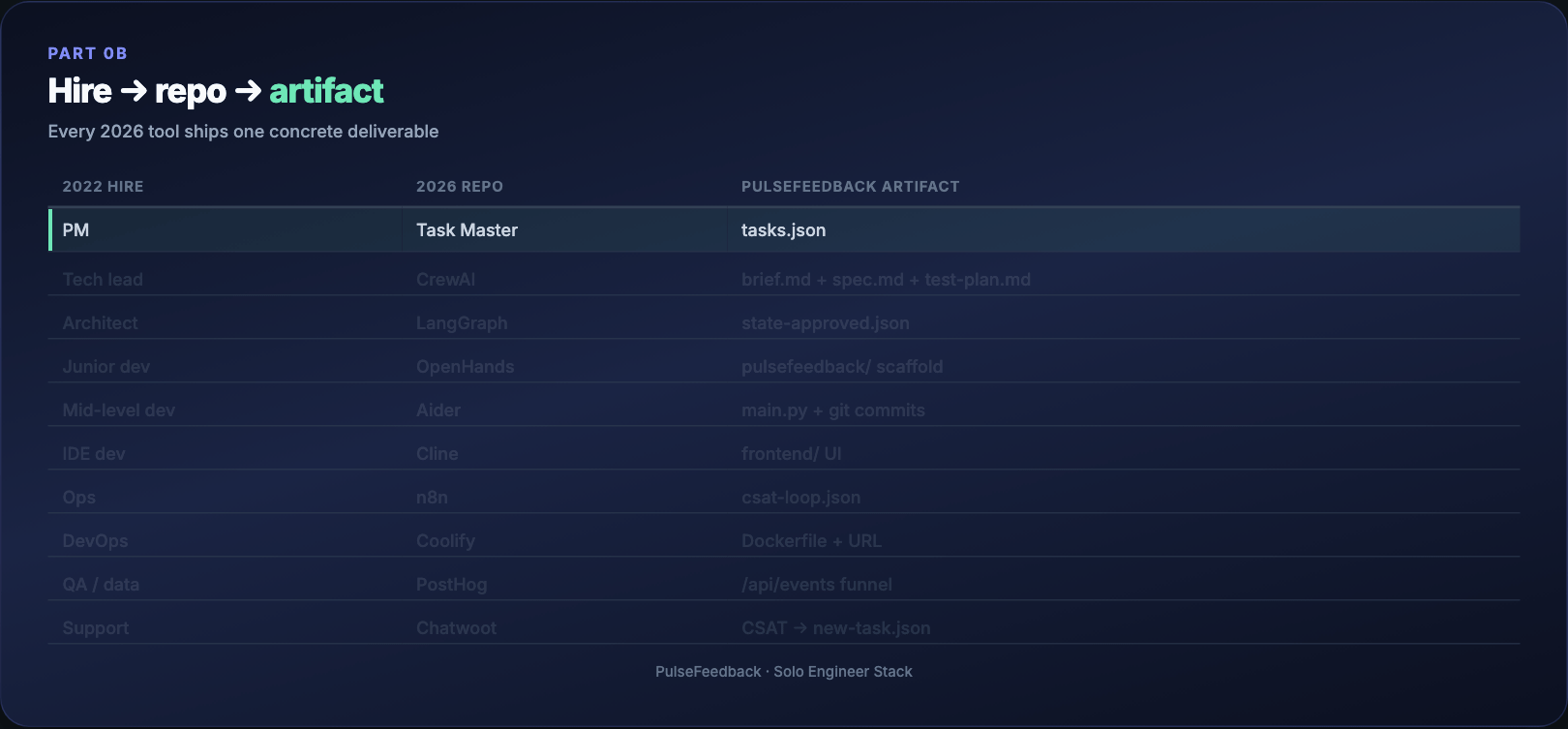

2022 hire	2026 repo	PulseFeedback artifact
PM	Task Master	tasks.json
Tech lead	CrewAI	brief.md + spec.md + test-plan.md
Architect	LangGraph	orchestrator/graph.py + approval JSON
Junior dev	OpenHands	pulsefeedback/ scaffold
Mid-level dev	Aider	API in main.py + git commits
IDE dev	Cline	frontend/ UI
Ops	n8n	n8n/workflows/*.json
DevOps	Coolify	Dockerfile + live URL
QA / data	PostHog	/api/events + funnel
Support	Chatwoot	/api/webhooks/csat + widget

Deca-Loop (equal stages)

flowchart LR
    TM[1 Task Master] --> CR[2 CrewAI] --> LG[3 LangGraph]
    LG --> OH[4 OpenHands] --> AI[5 Aider] --> CL[6 Cline]
    CL --> N8[7 n8n] --> CO[8 Coolify] --> PH[9 PostHog] --> CW[10 Chatwoot]
    CW -->|CSAT ≤ 2| TM

Rule: Each tool ships one artifact before the next starts. ~30 minutes per tool on first run.

---

Part 1 — Task Master (PM)

Repo: eyaltoledano/claude-task-master

Job: Turn the PRD into 10 epics — one per stack tool.

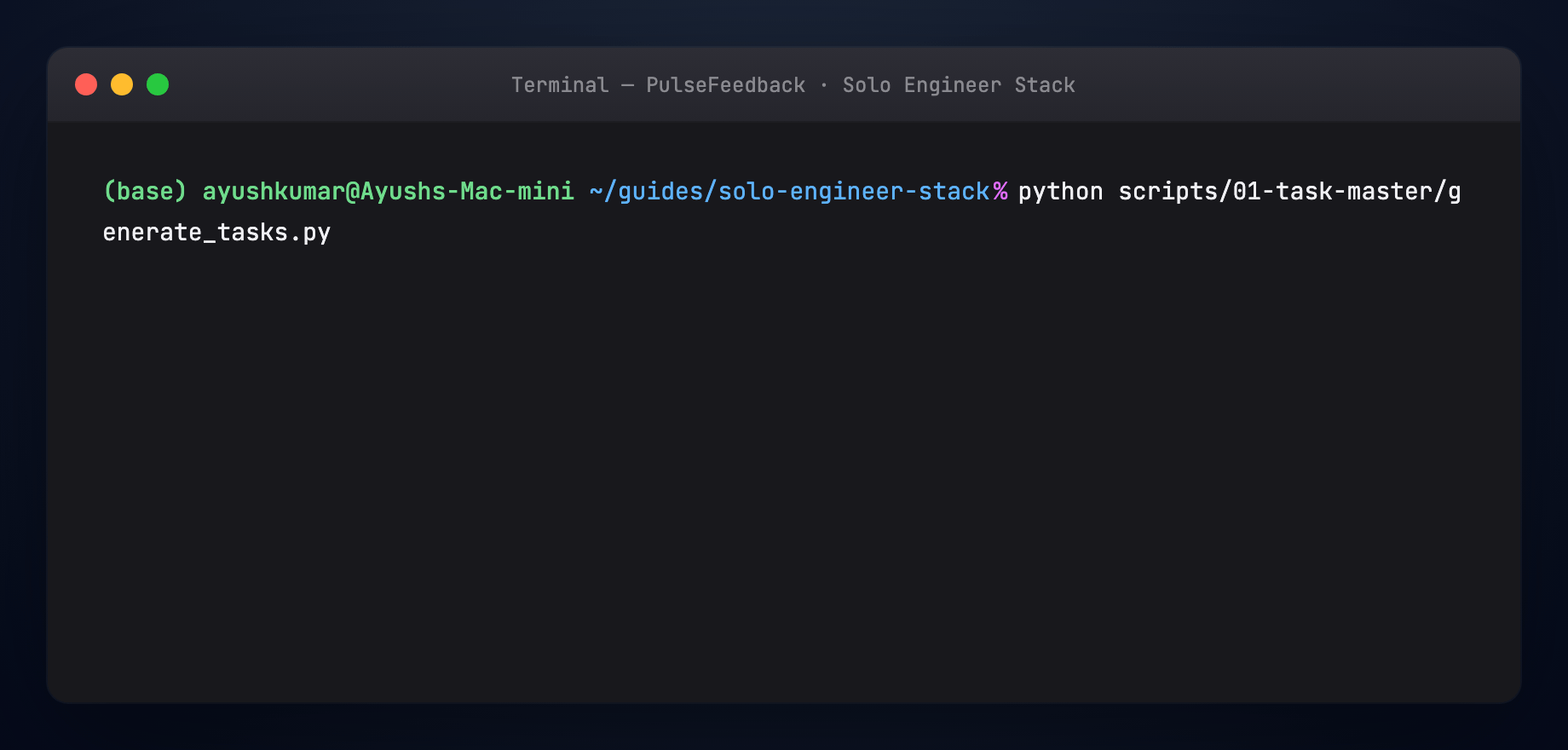

Run now (included script — no npm install)

python scripts/01-task-master/generate_tasks.py
cat artifacts/01-task-master/tasks.json | python -m json.tool

You get 10 epics (E1–E10) tagged crewai, langgraph, openhands, … task_master.

Input PRD

cat examples/prd-pulsefeedback.md

Extend with real Task Master (optional)

git clone https://github.com/eyaltoledano/claude-task-master.git ~/claude-task-master
cd ~/claude-task-master && npm install && cp .env.example .env
# Set ANTHROPIC_API_KEY or OPENAI_* in .env

npx task-master parse-prd \
  "$(pwd)/../agentic-ai-ecosystem/guides/solo-engineer-stack/examples/prd-pulsefeedback.md"
npx task-master list
# Merge LLM output into artifacts/01-task-master/tasks.json if desired

Verify

test -f artifacts/01-task-master/tasks.json && echo "Part 1 OK"
jq '.epics | length' artifacts/01-task-master/tasks.json   # should print 10

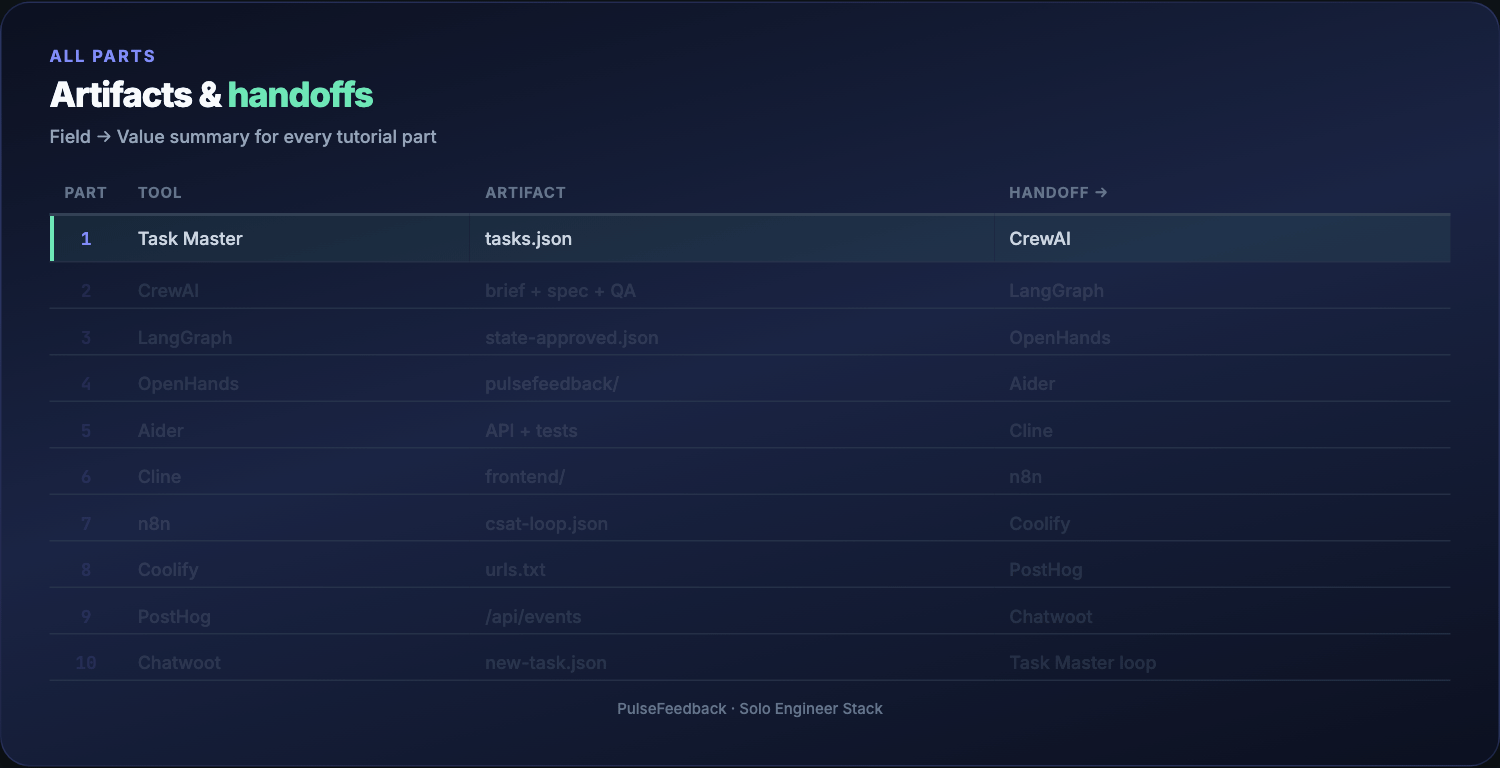

Handoff: Part 1 → row in table-handoff-summary.gif

Field	Value
Artifact	artifacts/01-task-master/tasks.json
Handoff → Part 2	PRD + tasks.json

---

Part 2 — CrewAI (tech lead)

Repo: crewAIInc/crewai

Job: Three agents → three documents (equal weight).

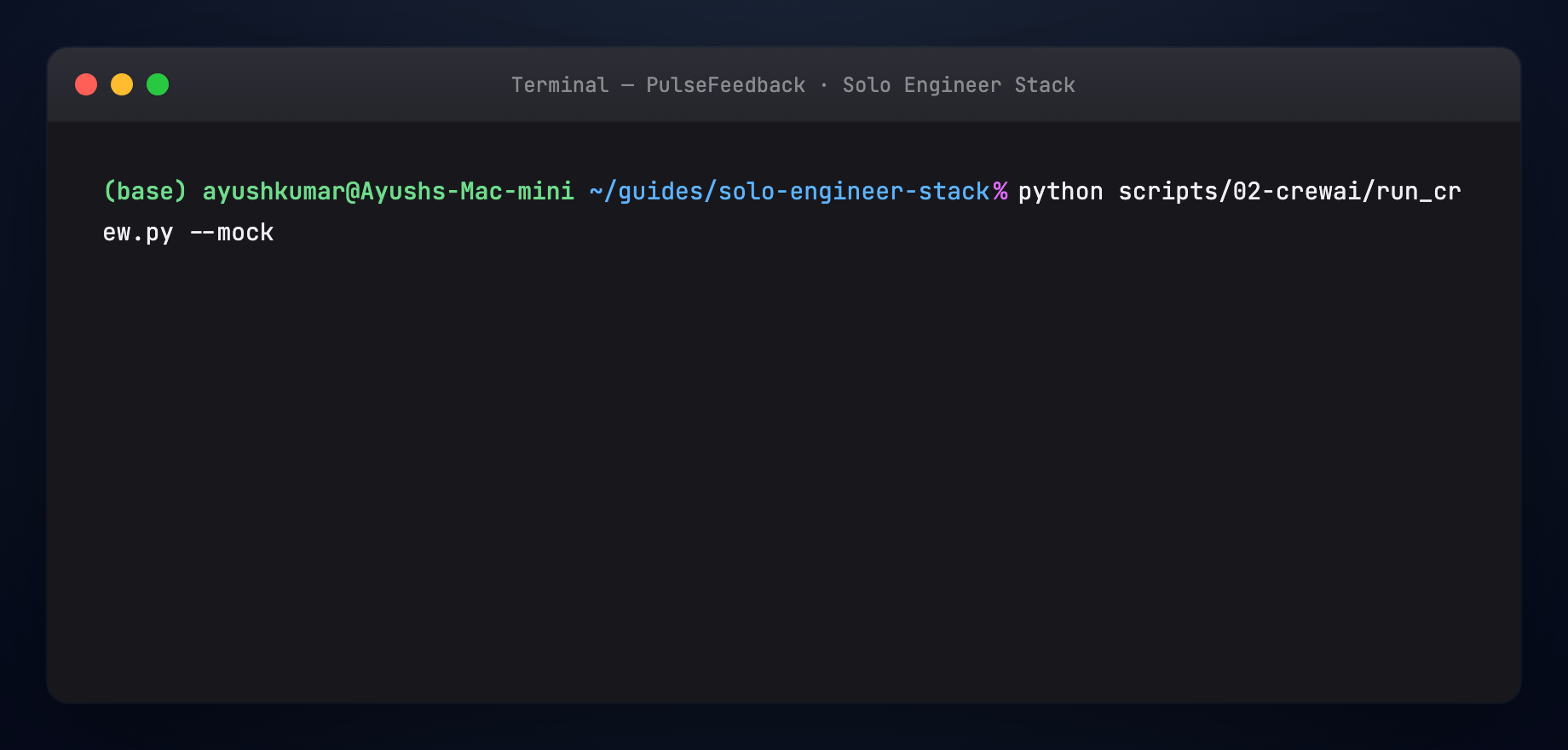

Run now — offline demo (no API key)

python scripts/02-crewai/run_crew.py --mock
ls -la artifacts/02-crewai/

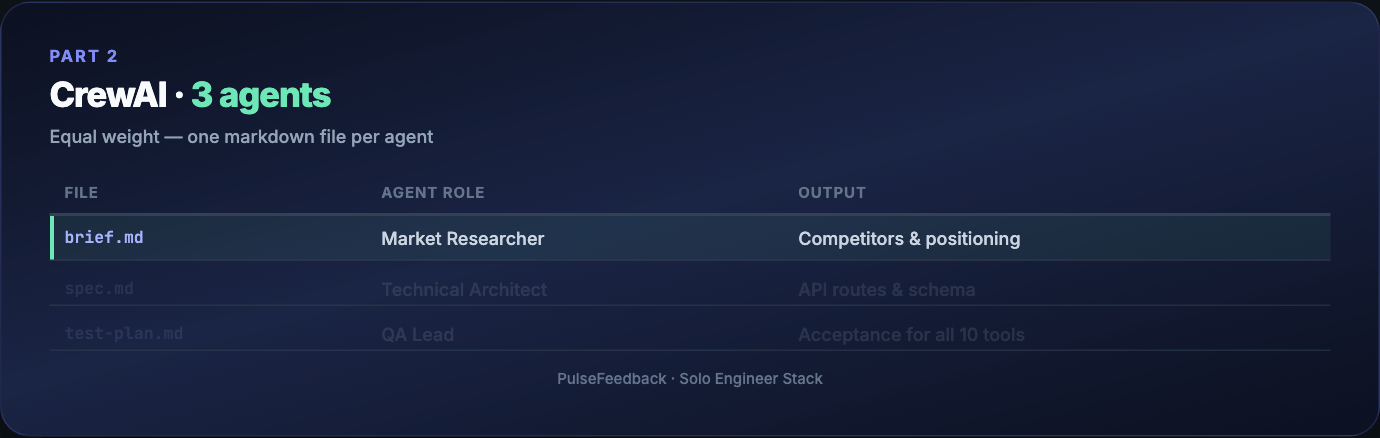

File	Agent role
brief.md	Market Researcher
spec.md	Technical Architect
test-plan.md	QA Lead

Medium / blog: use the GIF above instead of the markdown table.

Run live (needs LLM)

pip install crewai   # or uncomment in requirements.txt
export OPENAI_API_KEY=sk-...
export CREWAI_MODEL=gpt-4o
python scripts/02-crewai/run_crew.py

The live script uses three CrewAI agents defined in scripts/02-crewai/run_crew.py:

• Researcher — competitor landscape
• Architect — API routes + schema (matches pulsefeedback/backend/main.py)
• QA Lead — acceptance tests (matches tests/test_api.py)

Verify

grep -l "POST /api/feedback" artifacts/02-crewai/spec.md && echo "Part 2 OK"

Handoff: Part 2 → table-handoff-summary.gif

Field	Value
Artifact	artifacts/02-crewai/{brief,spec,test-plan}.md
Handoff → Part 3	All three files + tasks.json

---

Part 3 — LangGraph (architect)

Repo: langchain-ai/langgraph

Job: Enforce the Deca-Loop order + human approval gate before code ships.

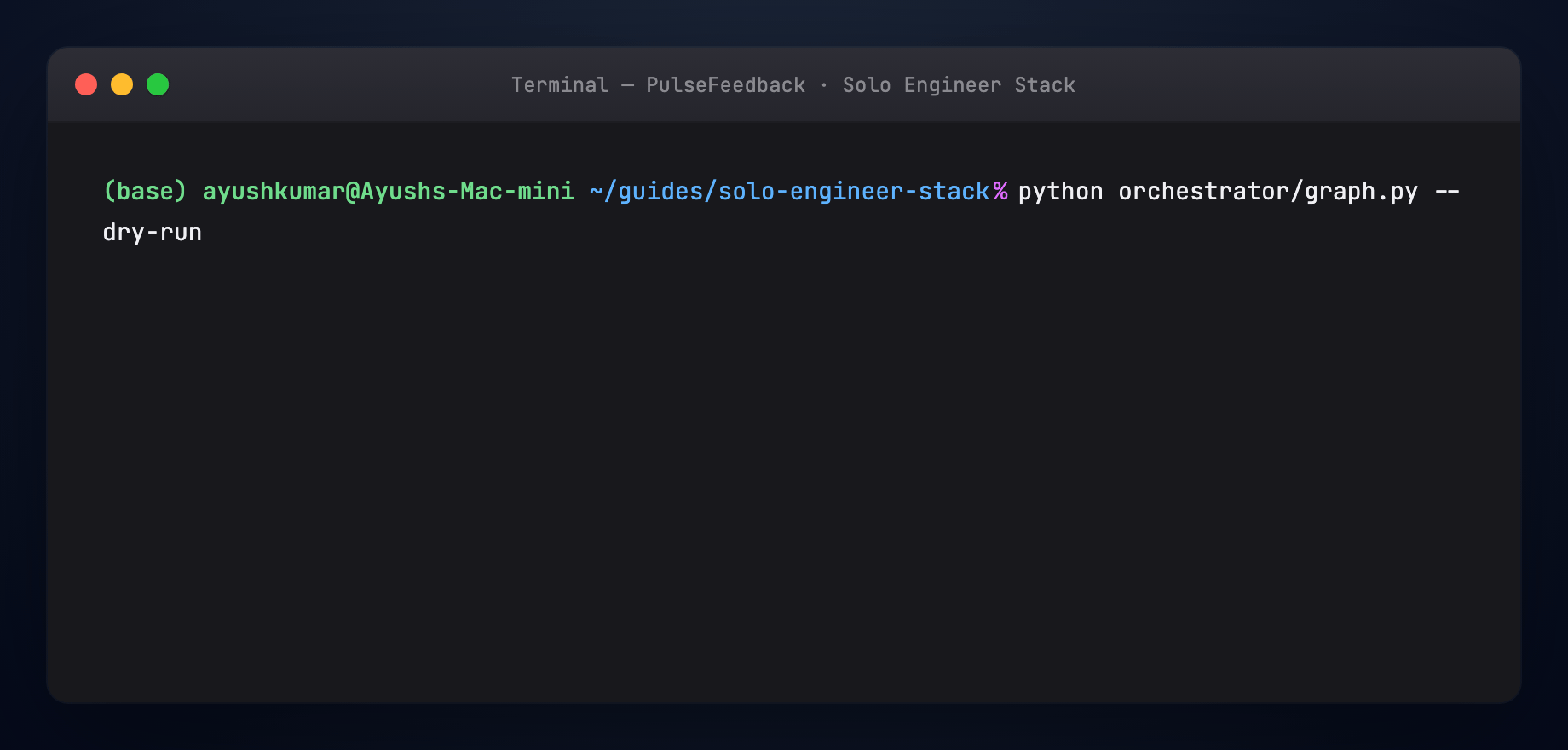

Run now — preview all 10 stages

python orchestrator/graph.py --dry-run

Run now — pass approval gate

pip install langgraph langchain-openai   # for invoke path
python scripts/03-langgraph/approve_gate.py
cat artifacts/03-langgraph/state-approved.json

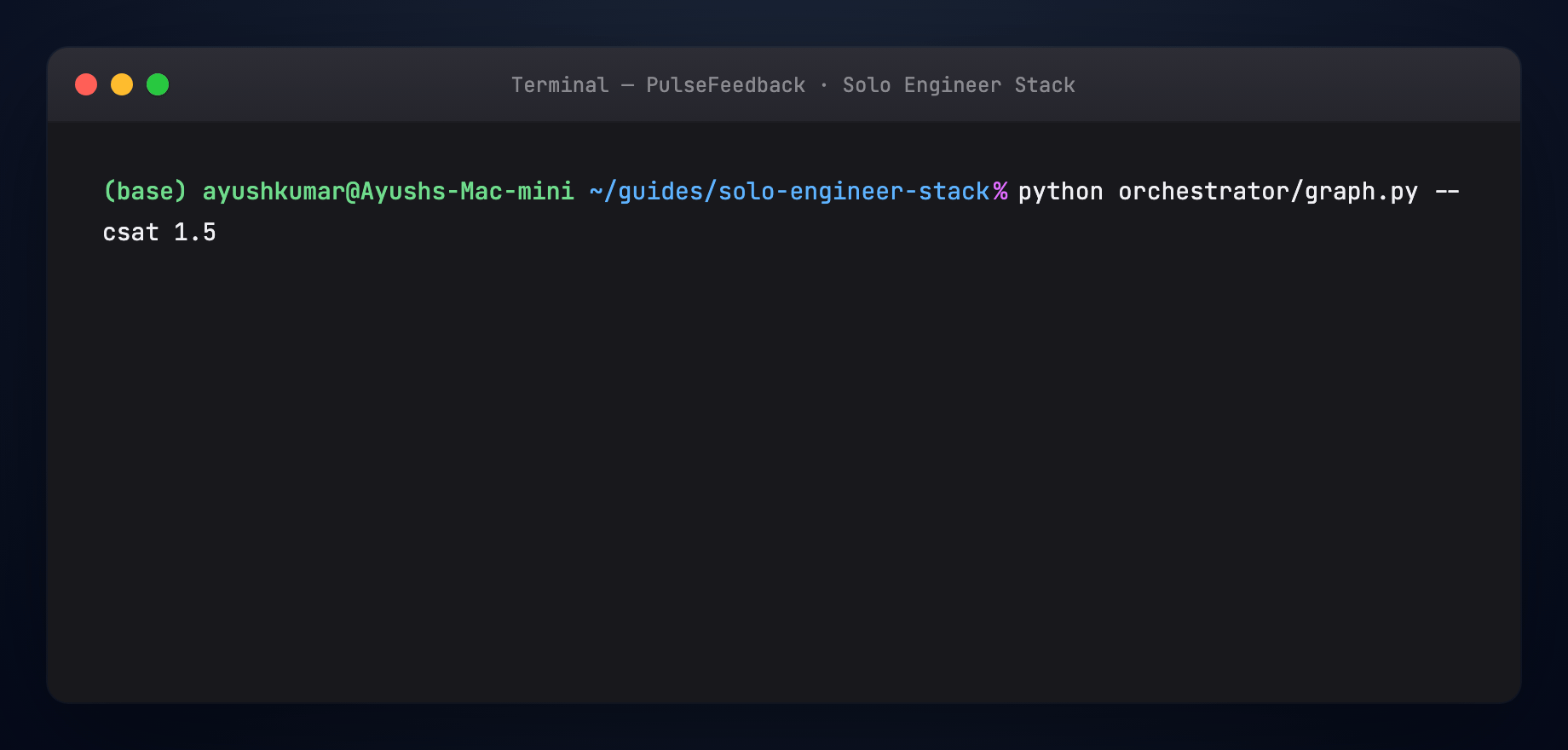

Simulate CSAT loop (returns to Task Master)

pip install langgraph
python orchestrator/graph.py --csat 1.5
# Final stage: task_master

What the graph does

File: orchestrator/graph.py

Node	Next stage
task_master	crewai
crewai	langgraph_gate
langgraph_gate	openhands (only if human_approved=True)
…	…
chatwoot	task_master if CSAT ≤ 2, else done

Verify

test -f artifacts/03-langgraph/state-approved.json && echo "Part 3 OK"

Handoff: Part 3 → table-handoff-summary.gif

Field	Value
Artifact	artifacts/03-langgraph/state-approved.json
Handoff → Part 4	Approved spec → start building

---

Part 4 — OpenHands (junior dev)

Repo: OpenHands/OpenHands

Job: Scaffold repo — folders, Dockerfile, stub routes, CI skeleton.

What's already in the repo (reference implementation)

OpenHands would generate this structure. We ship it ready to run:

tree pulsefeedback -L 2
# pulsefeedback/
# ├── backend/main.py      ← FastAPI app
# ├── backend/database.py  ← SQLite
# ├── backend/schemas.py
# ├── frontend/index.html  ← UI shell
# ├── frontend/app.js
# └── Dockerfile

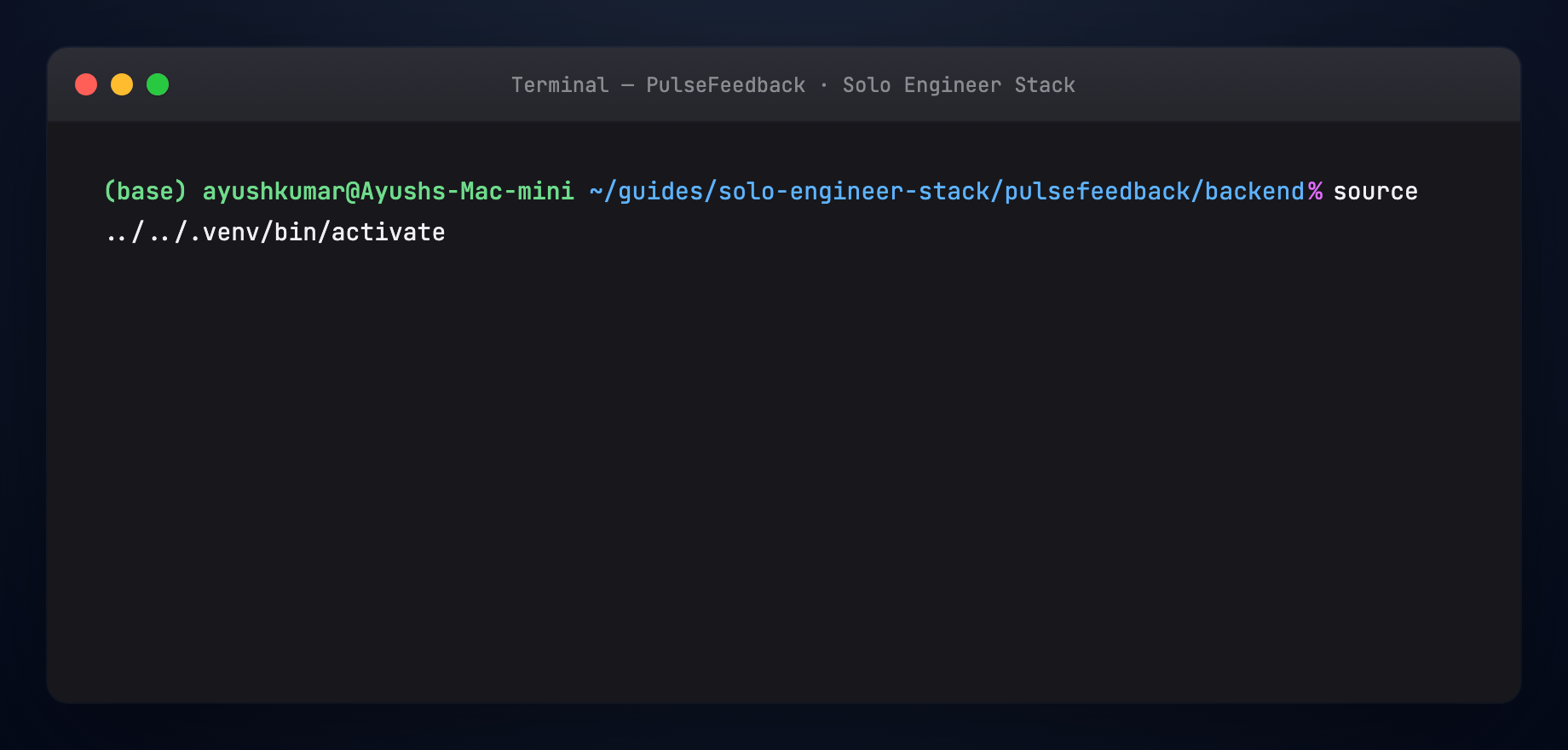

Start the app manually:

cd pulsefeedback/backend
source ../../.venv/bin/activate
uvicorn main:app --reload --port 8080
# open http://localhost:8080

Extend with real OpenHands (optional — for blog footage)

git clone https://github.com/OpenHands/OpenHands.git ~/OpenHands
cd ~/OpenHands
export LLM_MODEL=gpt-4o
export LLM_API_KEY=$OPENAI_API_KEY
export LLM_BASE_URL=${OPENAI_API_BASE:-https://api.openai.com/v1}
docker compose up

Paste into OpenHands UI:

Scaffold a feedback SaaS from artifacts/02-crewai/spec.md in a new repo.
Include: FastAPI, SQLite, static frontend, Dockerfile, pytest.
Match routes: POST/GET/PATCH /api/feedback, POST /api/events, POST /api/webhooks/csat.
Compare your output to github.com/Ayush7614/agentic-ai-ecosystem/tree/main/guides/solo-engineer-stack/pulsefeedback

Verify

curl -sf http://localhost:8080/health | python -m json.tool
# {"status":"ok","product":"PulseFeedback",...}

Handoff: Part 4 → table-handoff-summary.gif

Field	Value
Artifact	pulsefeedback/ directory
Handoff → Part 5	Running backend on port 8080

---

Part 5 — Aider (mid-level dev)

Repo: Aider-AI/aider

Job: Implement API logic with one git commit per feature.

What's already implemented

These routes exist in pulsefeedback/backend/main.py:

Method	Path	Status
POST	/api/feedback	✅ Create feedback
GET	/api/feedback	✅ List (?status= filter)
PATCH	/api/feedback/{id}	✅ Update status
POST	/api/events	✅ Analytics capture
GET	/api/events	✅ Event stream
POST	/api/webhooks/csat	✅ CSAT loop
GET	/api/stack	✅ 10-tool status

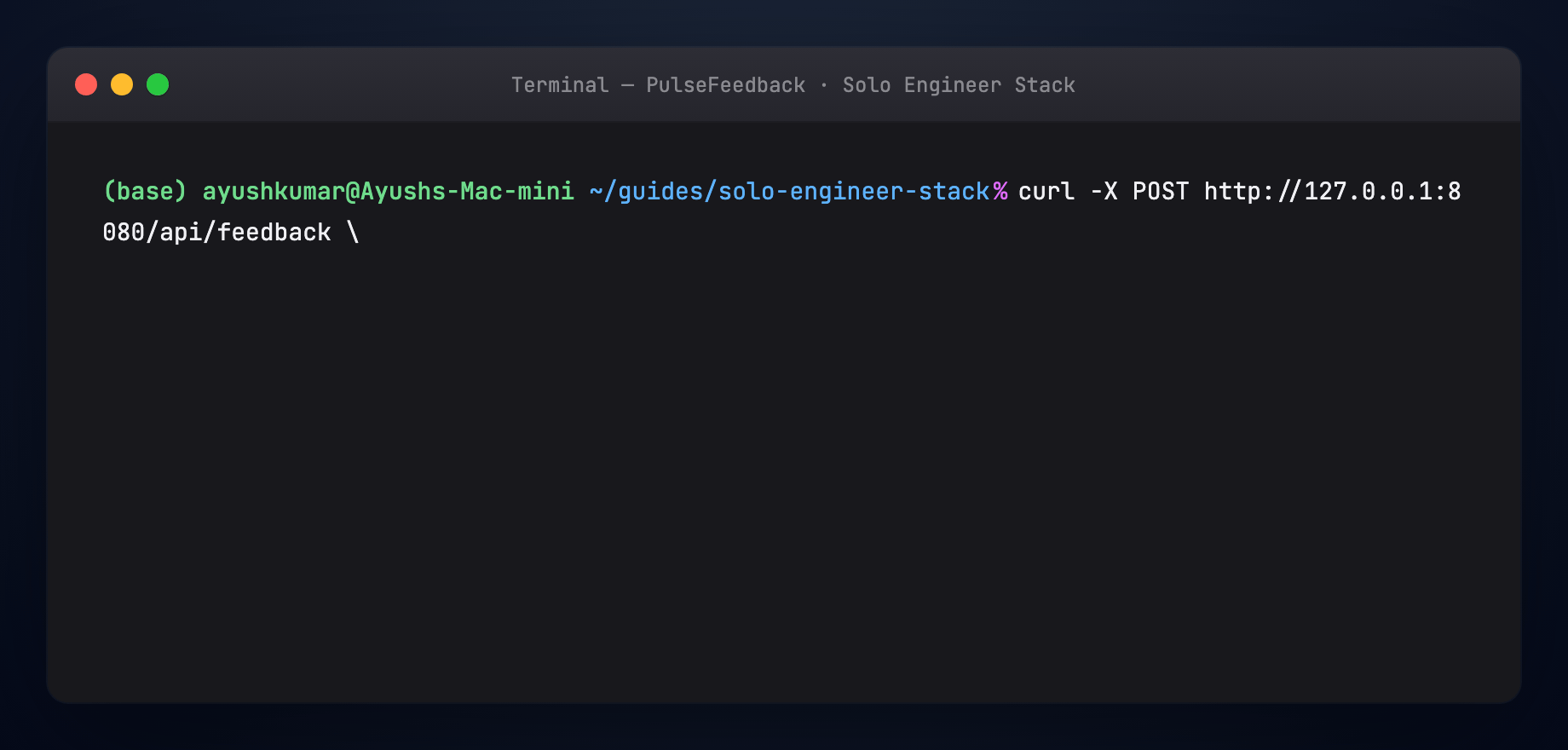

Test with curl (show on camera)

# Create
curl -X POST http://localhost:8080/api/feedback \
  -H 'Content-Type: application/json' \
  -d '{"title":"Dark mode","body":"Please add dark theme","email":"demo@example.com"}'

# List
curl http://localhost:8080/api/feedback | python -m json.tool

# Triage
curl -X PATCH http://localhost:8080/api/feedback/1 \
  -H 'Content-Type: application/json' \
  -d '{"status":"triaged"}'

Extend with real Aider (optional)

pip install aider-chat
cd pulsefeedback/backend

aider --model openai/gpt-4o \
  --openai-api-base "${OPENAI_API_BASE:-https://api.openai.com/v1}" \
  --openai-api-key "$OPENAI_API_KEY" \
  main.py schemas.py database.py

Example prompts (one commit each):

1. "Add email validation on POST /api/feedback"
2. "Add DELETE /api/feedback/{id} for admin"
3. "Add test in ../../tests/test_api.py"

Save git log for artifact:

git log --oneline -10 > ../../artifacts/05-aider/git-log.txt

Verify

pytest tests/test_api.py::test_feedback_crud -q && echo "Part 5 OK"

Handoff: Part 5 → table-handoff-summary.gif

Field	Value
Artifact	Working API + tests/test_api.py
Handoff → Part 6	API stable → build UI

---

Part 6 — Cline (IDE teammate)

Repo: cline/cline

Job: Build dashboard UI + verify in browser.

What's already in the repo

ls pulsefeedback/frontend/
# index.html  app.js  style.css

The UI has 5 tabs wired to real APIs:

1. Submit — form → POST /api/feedback
2. Dashboard — cards → PATCH /api/feedback/{id}
3. Analytics — table → GET /api/events
4. Support — CSAT form → POST /api/webhooks/csat
5. 10 Tools — grid → GET /api/stack

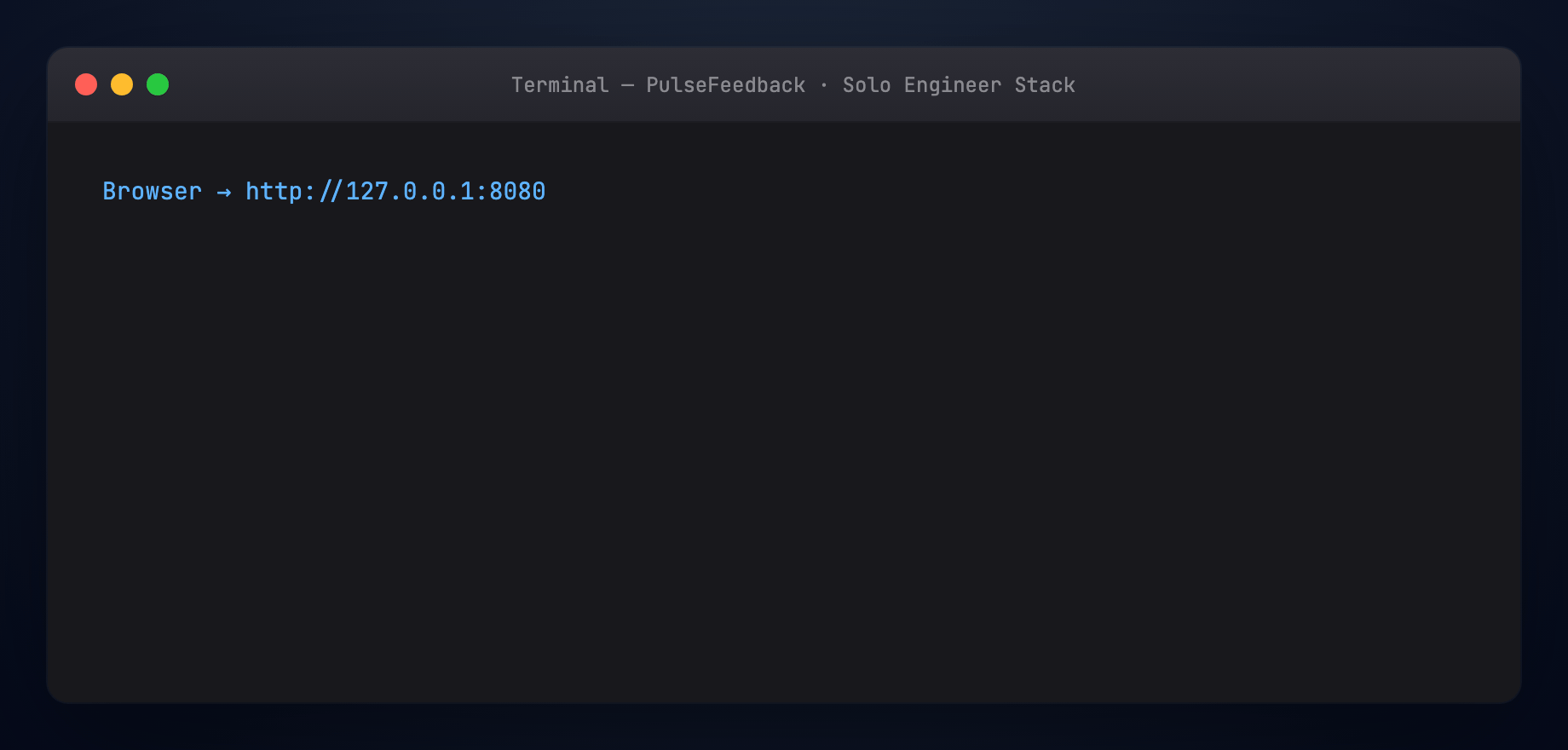

Demo in browser (no Cline required)

./scripts/demo.sh
# open http://localhost:8080
# Submit → Dashboard → change status → Analytics → Support (score 1)

Extend with real Cline in Cursor (optional)

1. Install Cline extension in Cursor
2. Settings → API Provider → OpenAI Compatible
3. Open guides/solo-engineer-stack/pulsefeedback/frontend/
4. Prompt:

Add a search filter to the Dashboard tab that filters feedback cards by title.
Use the existing GET /api/feedback endpoint. Verify in browser.
Acceptance: see artifacts/02-crewai/test-plan.md

Verify

curl -sf http://localhost:8080/ | grep -q PulseFeedback && echo "Part 6 OK"

Handoff: Part 6 → table-handoff-summary.gif

Field	Value
Artifact	pulsefeedback/frontend/ + working browser flow
Handoff → Part 7	App runs end-to-end locally

---

Part 7 — n8n (operations)

Repo: n8n-io/n8n

Job: Three workflows — deploy, notify, CSAT loop.

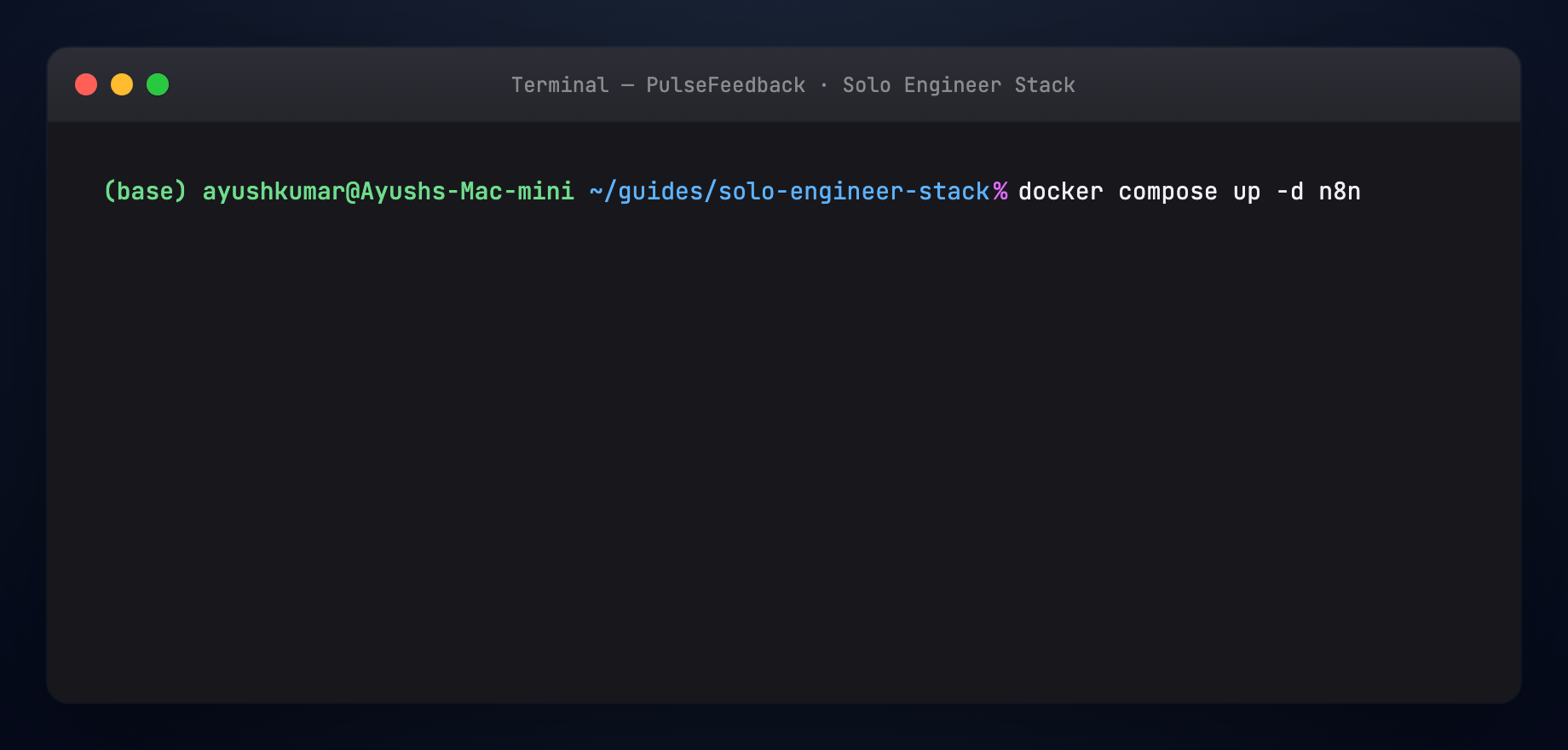

Run now — start n8n

docker compose up -d n8n
open http://localhost:5678

Import real workflow (included)

1. n8n UI → Workflows → Import from file
2. Select n8n/workflows/csat-loop.json
3. Activate workflow → copy webhook URL

Workflow path:

Webhook (CSAT) → HTTP POST host.docker.internal:8080/api/webhooks/csat → IF loop_triggered

Test CSAT without n8n (direct — always works)

curl -X POST http://localhost:8080/api/webhooks/csat \
  -H 'Content-Type: application/json' \
  -d '{"score":1,"comment":"Support bot failed"}'

cat artifacts/11-csat-loop/new-task.json

Expected new-task.json:

{
  "source": "chatwoot_csat",
  "title": "Fix support issue from low CSAT",
  "next_tool": "task_master",
  ...
}

Test through n8n webhook

# Replace WEBHOOK_ID after import
curl -X POST http://localhost:5678/webhook/csat \
  -H 'Content-Type: application/json' \
  -d '{"score":2,"comment":"via n8n"}'

Optional workflows to add in n8n UI

Workflow	Trigger	Action
Deploy	GitHub push main	Coolify redeploy API
Notify	Deploy success	Slack / email
CSAT loop	✅ included JSON	→ PulseFeedback → Task Master file

Save workflow IDs:

mkdir -p artifacts/07-n8n
echo "csat-loop: imported from n8n/workflows/csat-loop.json" > artifacts/07-n8n/workflow-ids.txt

Verify

test -f n8n/workflows/csat-loop.json && echo "Part 7 OK"
curl -sf http://localhost:5678/healthz && echo "n8n running"

Handoff: Part 7 → table-handoff-summary.gif

Field	Value
Artifact	n8n/workflows/csat-loop.json + running n8n
Handoff → Part 8	Webhooks wired → deploy

---

Part 8 — Coolify (DevOps)

Repo: coollabsio/coolify

Job: HTTPS deploy for app + services.

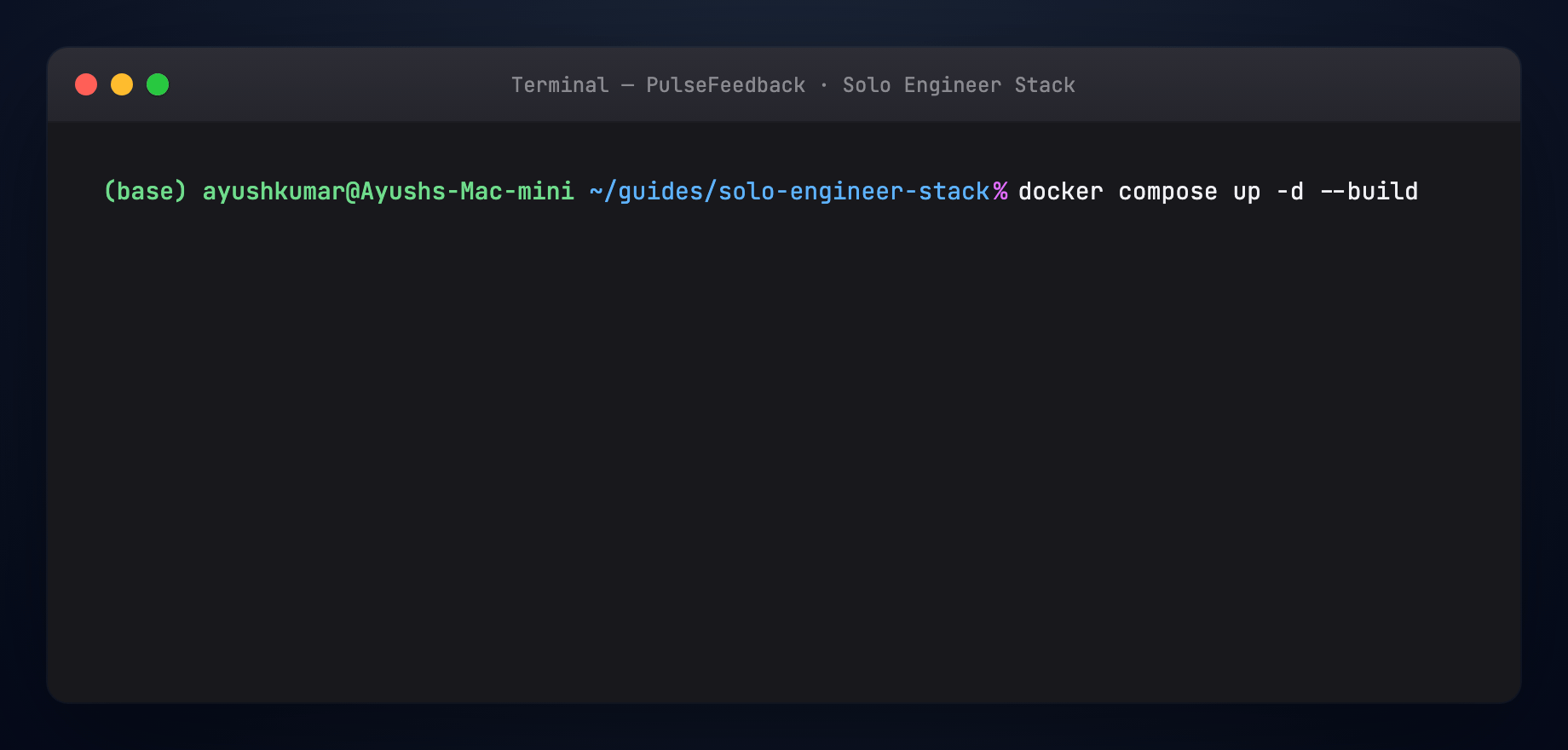

Run now — Docker (local production preview)

docker compose up -d --build
curl -sf http://localhost:8080/health
open http://localhost:8080

This builds pulsefeedback/Dockerfile:

• FastAPI on port 8080
• Mounts ./artifacts for CSAT loop files
• STACK_ROOT=/app for correct paths inside container

Deploy to Coolify (VPS)

1. Install Coolify on a VPS → coolify.io/docs
2. New resource → Docker Compose or Dockerfile
3. Point at your fork / guides/solo-engineer-stack/pulsefeedback/
4. Set domain + enable SSL
5. Pair with n8n workflow from Part 7 for auto-redeploy

Save URLs:

mkdir -p artifacts/08-coolify
cat > artifacts/08-coolify/urls.txt <<EOF
APP_URL=http://localhost:8080
N8N_URL=http://localhost:5678
# Production:
# APP_URL=https://feedback.yourdomain.com
EOF

Verify

test -f pulsefeedback/Dockerfile && echo "Part 8 OK"
docker compose ps

Handoff: Part 8 → table-handoff-summary.gif

Field	Value
Artifact	artifacts/08-coolify/urls.txt + live URL
Handoff → Part 9	App reachable on HTTPS or localhost

---

Part 9 — PostHog (QA + data)

Repo: PostHog/posthog

Job: Product analytics — events, funnel, feature flags.

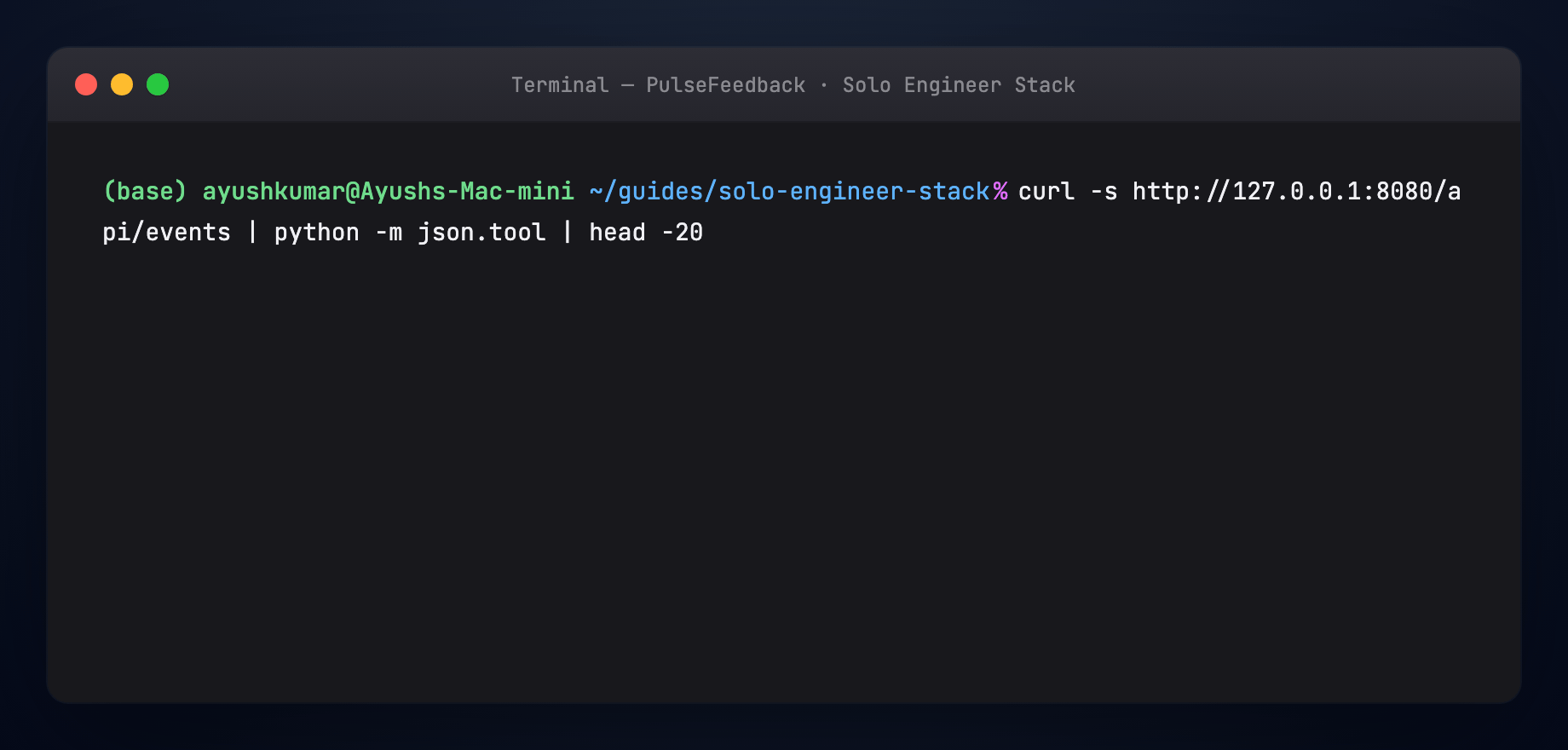

Run now — local event API (already wired)

Every UI action hits POST /api/events. View the stream:

# Submit feedback in browser, then:
curl http://localhost:8080/api/events | python -m json.tool

Or open the Analytics tab at http://localhost:8080.

Events captured automatically:

Event	When
feedback_submitted	User submits form
feedback_status_changed	Triage status update
csat_received	CSAT webhook fired

Wire real PostHog (production)

1. Create project at posthog.com or self-host
2. Add to pulsefeedback/frontend/index.html (before app.js):

<script>
  !function(t,e){...}(document,window.posthog||[]);
  posthog.init('phc_YOUR_KEY', { api_host: 'https://app.posthog.com' })
</script>

1. Mirror events — in app.js after successful submit:

if (window.posthog) posthog.capture('feedback_submitted', { id: out.id });

1. Create funnel: feedback_submitted → feedback_status_changed
2. Create feature flag new-triage-ui — 50% rollout

Set in .env:

POSTHOG_API_KEY=phc_...
POSTHOG_HOST=https://app.posthog.com

QA checklist (from artifacts/02-crewai/test-plan.md)

pytest tests/ -q                                    # API
curl -sf http://localhost:8080/api/events | jq length   # events > 0 after demo

• [ ] Submit feedback → event appears in Analytics tab
• [ ] Triage status → feedback_status_changed event
• [ ] CSAT 1 → csat_received with loop_triggered: true

Verify

curl -sf http://localhost:8080/api/events | python -m json.tool | head -5
echo "Part 9 OK"

Handoff: Part 9 → table-handoff-summary.gif

Field	Value
Artifact	Event stream at /api/events (+ PostHog project in prod)
Handoff → Part 10	Metrics live → add support

---

Part 10 — Chatwoot (support)

Repo: chatwoot/chatwoot

Job: Support inbox + CSAT → loop back to Task Master.

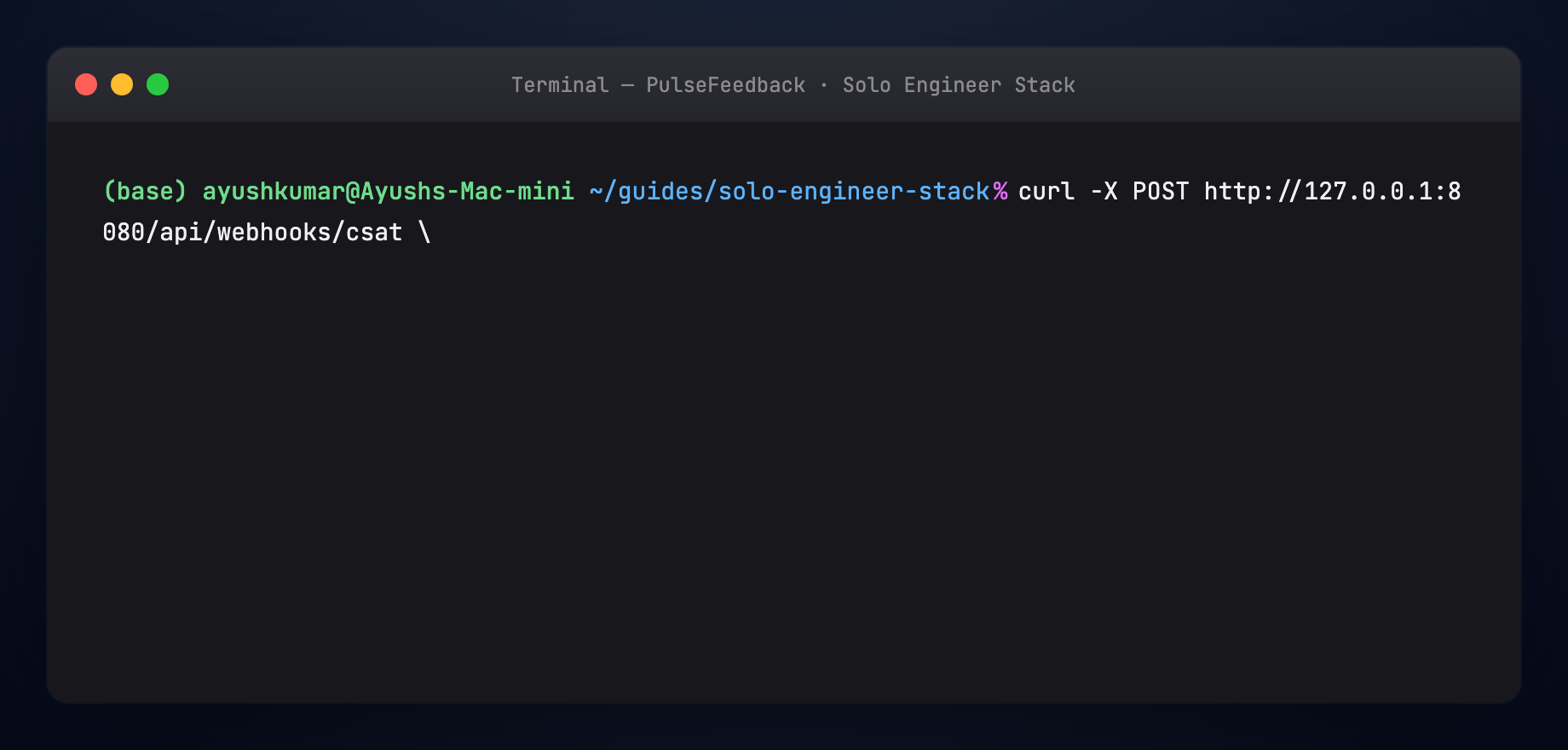

Run now — CSAT loop (no Chatwoot install required)

The Support tab at http://localhost:8080 simulates Chatwoot CSAT.

Or via curl:

curl -X POST http://localhost:8080/api/webhooks/csat \
  -H 'Content-Type: application/json' \
  -d '{"score":1,"comment":"I need human help"}'

cat artifacts/11-csat-loop/new-task.json
cat artifacts/11-csat-loop/events.jsonl

This is the Deca-Loop closing — low CSAT creates a Task Master task file.

Wire real Chatwoot (production)

1. Deploy Chatwoot via Coolify or chatwoot.com/docs
2. Create Website inbox → copy widget script
3. Add widget to a landing page (or pulsefeedback/frontend/index.html)
4. Configure CSAT survey after conversation
5. Point CSAT webhook to n8n → n8n/workflows/csat-loop.json → PulseFeedback

.env:

CHATWOOT_URL=https://support.yourdomain.com
CHATWOOT_ACCOUNT_ID=1
CHATWOOT_API_TOKEN=...

n8n bridge (tools #7 + #10)

Chatwoot CSAT → n8n webhook → POST /api/webhooks/csat → new-task.json → Task Master

Verify

curl -sf -X POST http://localhost:8080/api/webhooks/csat \
  -H 'Content-Type: application/json' \
  -d '{"score":1}' | grep -q loop_triggered
echo "Part 10 OK"

Handoff: Part 10 → table-handoff-summary.gif

Field	Value
Artifact	artifacts/11-csat-loop/new-task.json
Handoff → Part 11	Loop closed

---

Part 11 — Close the loop

The stack only works when it feeds itself:

flowchart LR
    User[User CSAT survey]
    CW[Chatwoot]
    N8[n8n]
    API["/api/webhooks/csat"]
    ART["new-task.json"]
    TM[Task Master]
    CR[CrewAI]
    APP[pulsefeedback/]

    User --> CW --> N8 --> API --> ART --> TM --> CR --> APP

Full loop demo (terminal)

./scripts/demo.sh
# Watch: CSAT → new-task.json → re-run generate_tasks.py for next sprint
python scripts/01-task-master/generate_tasks.py
python orchestrator/graph.py --csat 1.5

Weekly solo-founder ritual

Day	Tool	Action
Mon	PostHog	Review /api/events or PostHog funnel
Tue	Chatwoot	Triage inbox + tag themes
Wed	Task Master	generate_tasks.py or Task Master CLI
Thu	Aider + Cline	Ship one epic on pulsefeedback/
Fri	n8n + Coolify	Deploy + Slack notify

---

Part 12 — One-command verification

Run before recording a blog or presenting:

chmod +x scripts/verify-stack.sh
./scripts/verify-stack.sh
./scripts/demo.sh
pytest tests/ -q

Expected:

All checks passed. Run ./scripts/demo.sh for live demo.
4 passed

API reference (quick)

Endpoint	Method	Purpose
/health	GET	Health check
/api/feedback	POST, GET	Create / list feedback
/api/feedback/{id}	PATCH	Triage status
/api/events	POST, GET	Analytics (PostHog)
/api/webhooks/csat	POST	Chatwoot / n8n CSAT
/api/stack	GET	10-tool status board
/docs	GET	OpenAPI (FastAPI)

---

Part 13 — Troubleshooting

Symptom	Fix
./scripts/demo.sh — port in use	PORT=8081 ./scripts/demo.sh
ModuleNotFoundError: fastapi	source .venv/bin/activate && pip install -r requirements.txt
UI loads but API 404	Run from pulsefeedback/backend: uvicorn main:app --port 8080
CSAT loop no file	Score must be ≤ 2; check artifacts/11-csat-loop/
n8n webhook fails	App must run; use host.docker.internal:8080 in Docker
verify-stack fails Part 3	pip install langgraph && python scripts/03-langgraph/approve_gate.py
CrewAI live run fails	Use --mock or set OPENAI_API_KEY
PostHog tab empty	Submit feedback in browser first, then refresh Analytics
Coolify build fails	Ensure STACK_ROOT=/app in Dockerfile (already set)

---

What's next

Goal	Guide
Private LLM for all coding agents	Gemma 4 12B
CrewAI + RAG research tool	Qwen Agentic RAG
Cursor team rules	Claude Code .claude/
Equal config for all 10 repos	STACK.md
5-min recording script	DEMO.md

Regenerate terminal GIFs

Same pipeline as Anthropic Cybersecurity Skills:

cd guides/solo-engineer-stack/assets
pip install playwright
python -m playwright install chromium
python3 render_stack_screenshots.py gif              # all 13 GIFs
python3 render_stack_screenshots.py gif --only 05-aider  # one step
./scripts/prepare-docs.sh   # from repo root — copies assets/ to docs/

GIF	Tutorial part
step-00-demo.gif	Part 0 — live demo
step-01-task-master.gif	Part 1
step-02-crewai.gif	Part 2
step-03-langgraph.gif	Part 3
step-04-openhands.gif	Part 4
step-05-aider.gif	Part 5
step-06-cline.gif	Part 6
step-07-n8n.gif	Part 7
step-08-coolify.gif	Part 8
step-09-posthog.gif	Part 9
step-10-chatwoot.gif	Part 10
step-11-verify-stack.gif	Part 12 — verification
step-12-csat-loop.gif	Part 11 — close loop

Table GIFs (Medium — use instead of markdown tables)

All tables in this tutorial have animated GIF + static PNG in assets/:

GIF	Tutorial section
table-demo-output.gif	Part 0 — demo outputs
table-ui-tabs.gif	Part 0 — browser tabs
team-vs-stack-table.gif	Part 0b — 2022 → 2026
table-hire-artifacts.gif	Part 0b — hire + artifact
table-handoff-summary.gif	Parts 1–10 — handoffs
crewai-agents-table.gif	Part 2 — CrewAI agents
table-langgraph-nodes.gif	Part 3 — LangGraph
table-api-routes.gif	Part 5 — API routes
table-n8n-workflows.gif	Part 7 — n8n
table-posthog-events.gif	Part 9 — PostHog
table-weekly-ritual.gif	Part 11 — weekly ritual
table-api-reference.gif	Part 12 — API reference
table-troubleshooting.gif	Part 13 — troubleshooting
table-whats-next.gif	What's next
deca-loop-tools-table.gif	README — 10 tools

Regenerate all:

cd guides/solo-engineer-stack/assets
python3 render_table_gifs.py all

Source: tutorial-tables.html · Static PNGs: same name with .png

Terminal prompt: (base) ayushkumar@Ayushs-Mac-mini ~ % (local macOS zsh style).

---

Upstream repos: OpenHands · Aider · Cline · Task Master · CrewAI · LangGraph · n8n · Coolify · PostHog · Chatwoot
